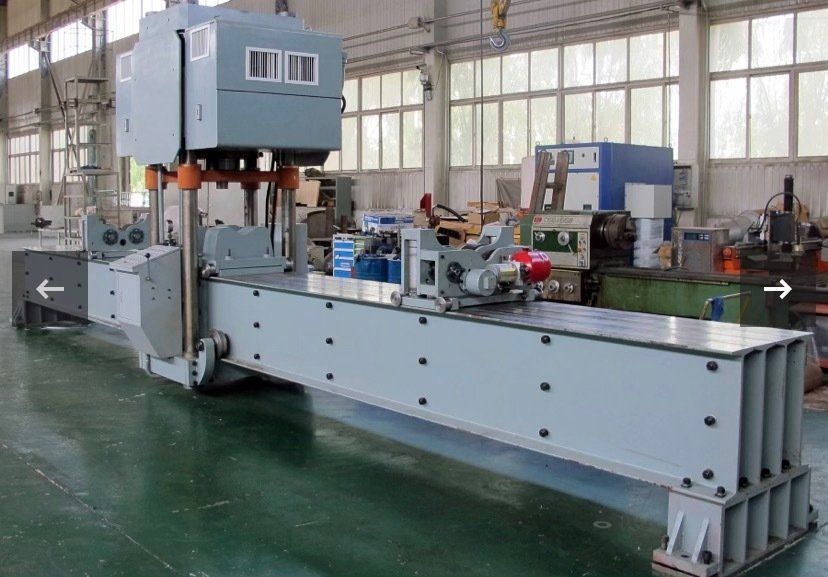

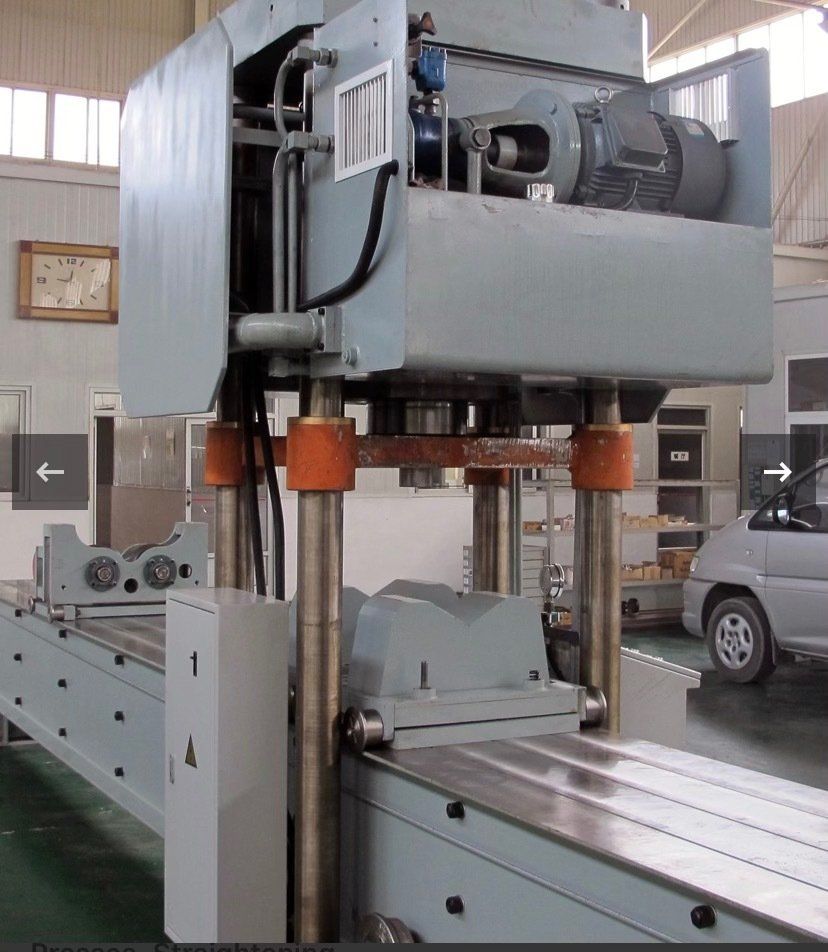

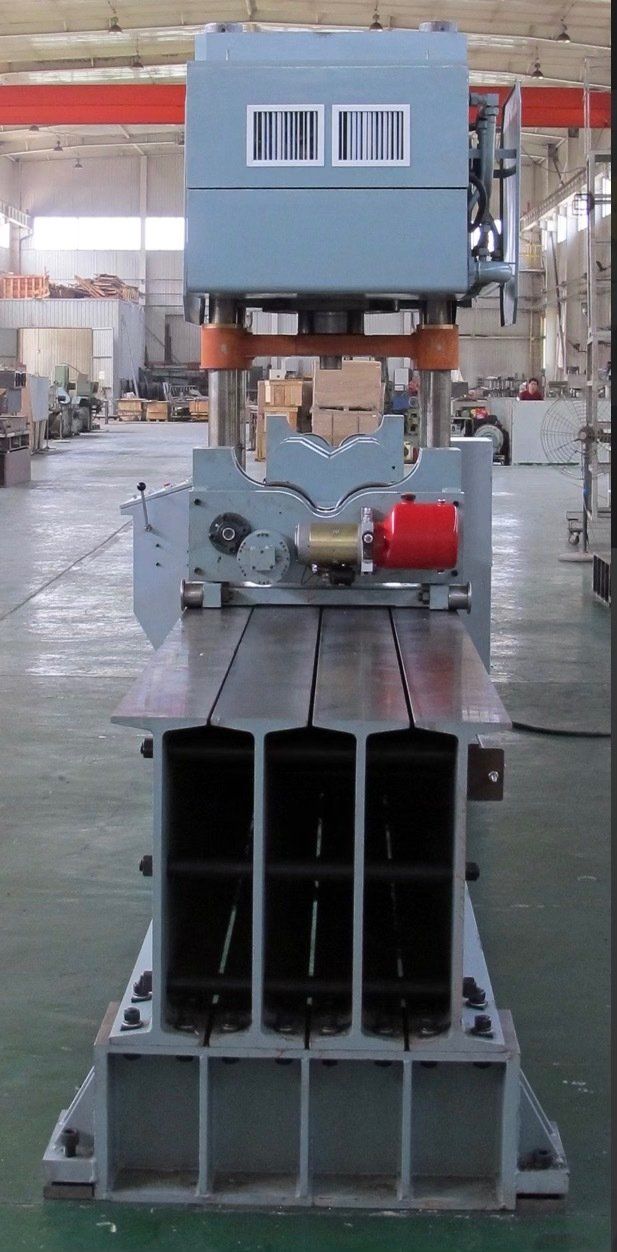

NEW, TVAN 400 TON STRAIGHTENING PRESS

Specifications

Equipped With

CAPACITY (ADJ. FROM 15% TO 110% OF RATED CAP.): 400 TONS

PRESS BED: 29.3" X 364.2"

GANTRY TRAVEL: 240"

GANTRY TRAVEL SPEED: 130 IPM

RAM STROKE (ADJUSTABLE): 18"

OPEN DAYLIGHT (FACE OF NOSE TO TABLE): 29.6"

SHUT HEIGHT: 5.11"

TIE RODS DIAMETER: 4.7"

MAIN CYLINDER BORE: 15.7"

MAIN CYLINDER RAM DIAMETER: 11.8"

MAIN CYLINDER STROKE: 18.9"

MAIN CYLINDER WORKING PRESSURE: 3626 PSI

HYDRAULIC PRESSURE: 4641 PSI

PRESSURE GAUGE DIAMETER: 6"

INPUT POWER: 480V/3P/60HZ

WEIGHT (APPROX.): 41,800 LBS.

EQUIPPED WITH:

GROUND, POLISHED AND HARD SURFACED CHROME PLATED STEEL TIE RODS

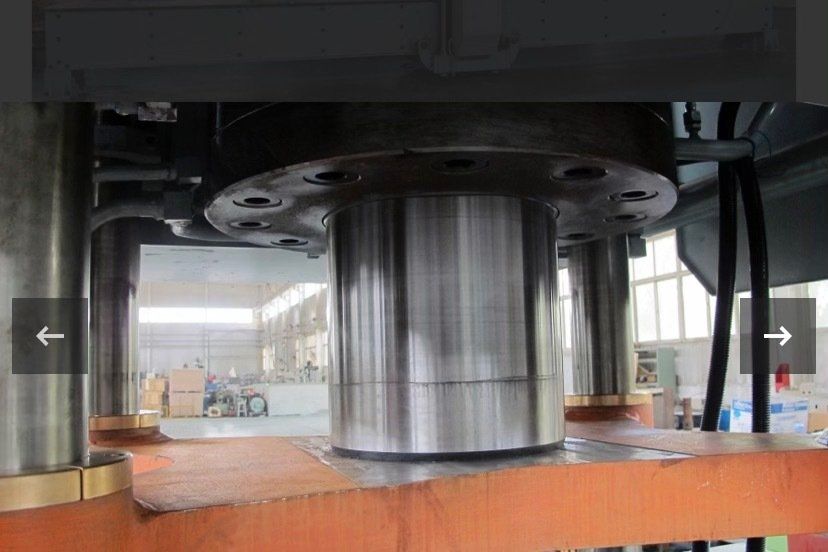

CHROME PLATED BORE AND RAM IN MAIN CYLINDER

LIQUID FILLED PRESSURE GAUGE

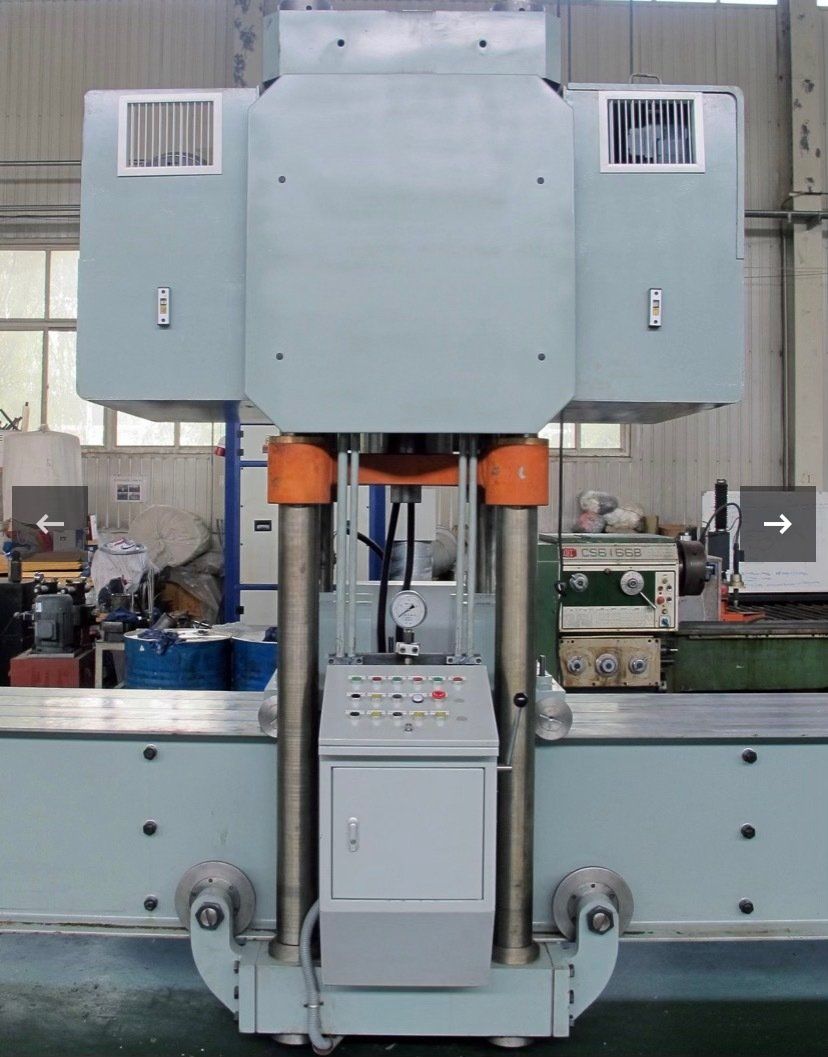

OPERATOR CONTROL PANEL

HYDRAULIC RESERVOIR
